Aurora Mental Health & Recovery: Precision-Manufactured Wayfinding System

Overview

Aurora Mental Health & Recovery, located in Aurora, United States, is a SAMHSA Certified Community Behavioral Health Clinic (CCBHC) grantee providing comprehensive mental health services. The facility aimed to achieve a clean, minimalist, and calming visual language that conveys safety and clinical professionalism. From January to May 2026, LC Sign delivered a complete healthcare signage system, including one multi-element illuminated monument sign, three illuminated channel letters and various applied signage components, ensuring precise fabrication, structural accuracy, and coordinated multi-site delivery.

Challenges

LC Sign encountered significant challenges across manufacturing, assembly, and logistics in the project.

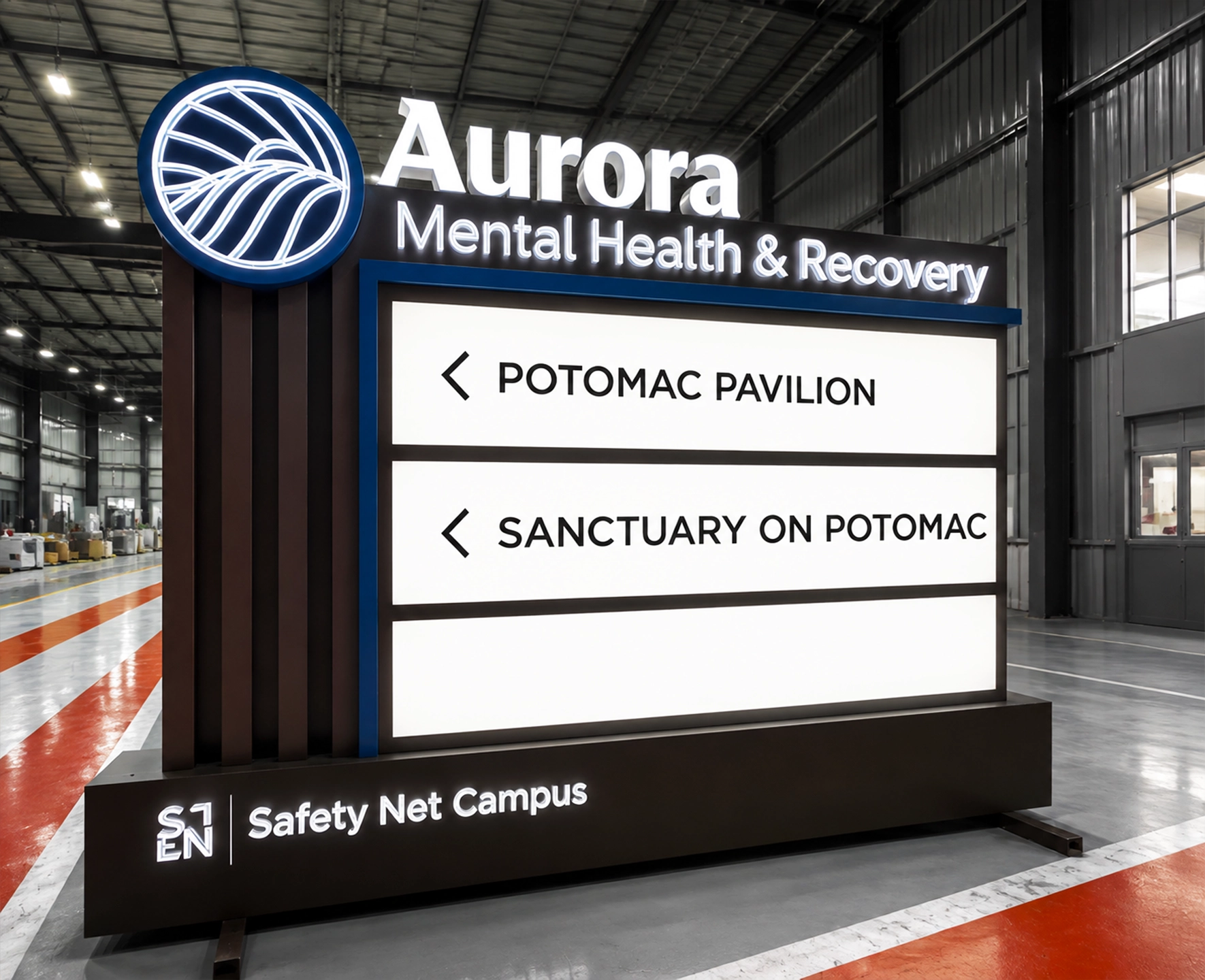

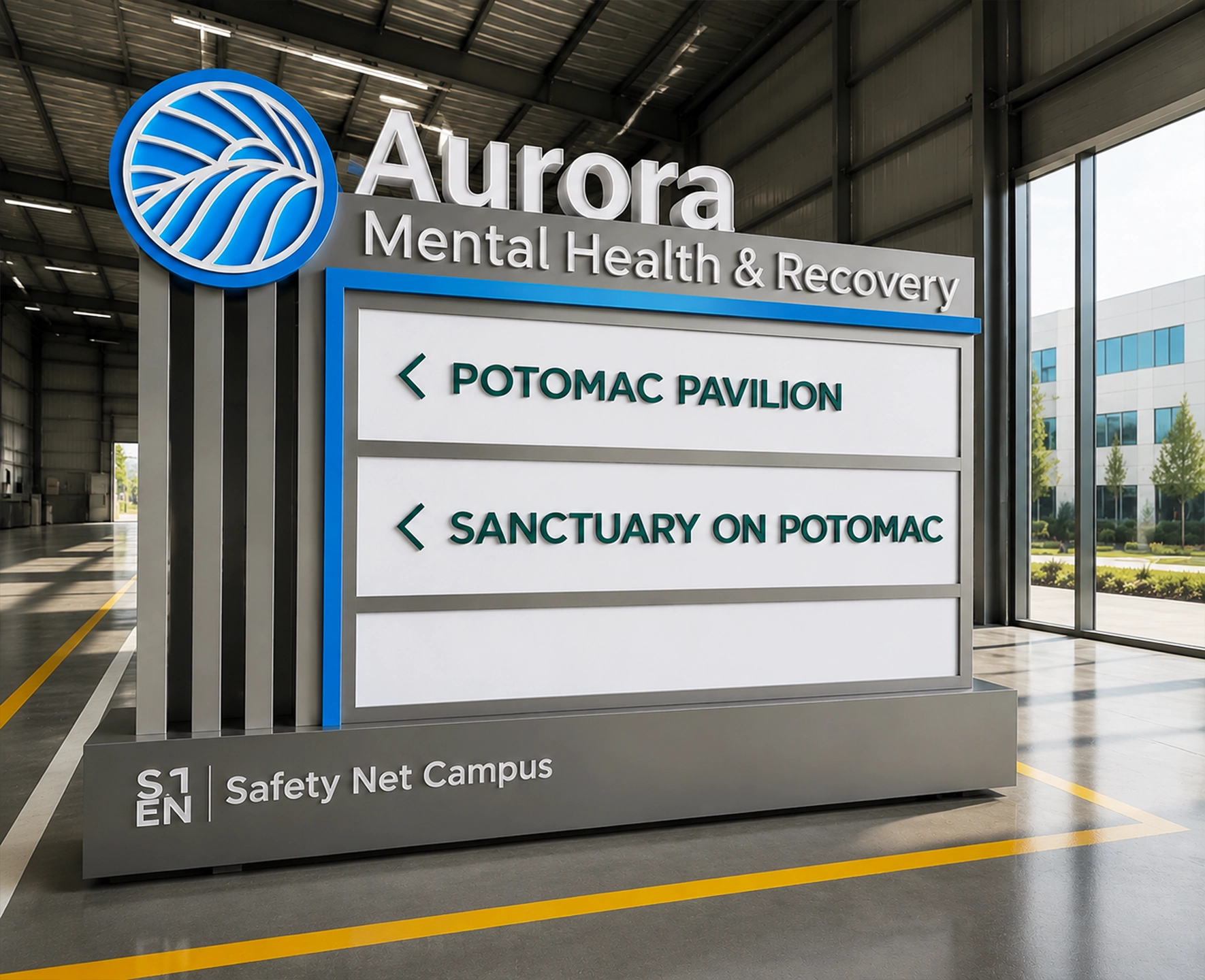

• Overall Structural Complexity: The multi-element illuminated monument sign combined aluminum, stainless steel, and acrylic materials across multi-layer illuminated cabinet structures, requiring highly integrated engineering to ensure stability, alignment, and visual consistency.
• Tight Precision Requirement: Fabrication demanded tight tolerances, with minimum component accuracy controlled within approximately 0.063 inches (1.6 mm), requiring precise coordination across multi-material and multi-layer assemblies.
•  Assembly and Logistics Difficulty: The project included one 3m × 2.5m monument sign system, three illuminated channel letters and various applied signage components, delivered to different sites, increasing packaging, coordination, and distribution complexity.

Process

LC Sign implemented a series of coordinated actions across design interpretation, precision manufacturing, and controlled delivery to successfully complete the project.

Phase 1: Technical Interpretation & Engineering Detailing

LC Sign translated complex structural drawings into manufacturable engineering data for a multi-material signage system, ensuring feasibility and design intent alignment.

Phase 2: System-Based Precision Manufacturing

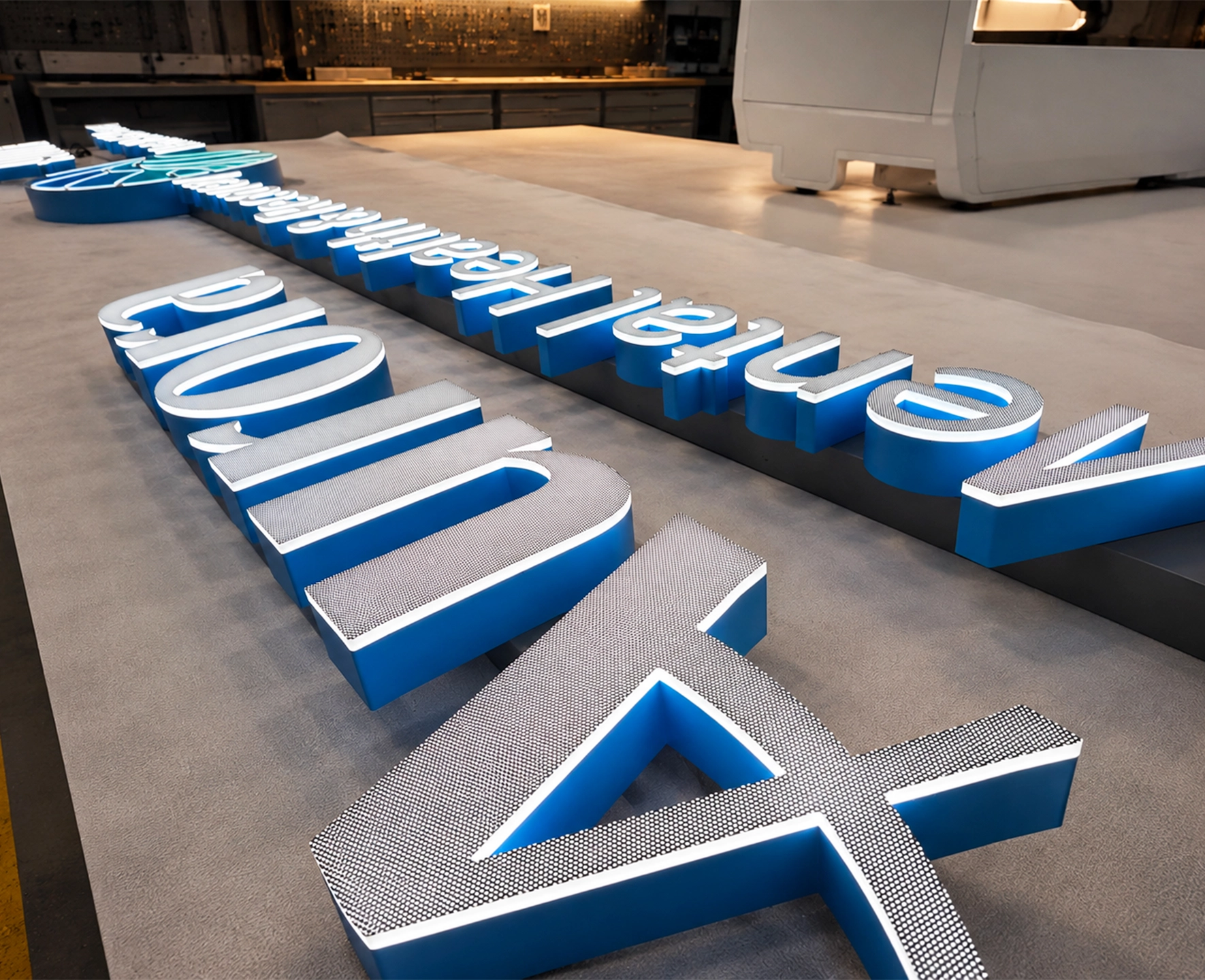

LC Sign fabricated and assembled all components of the system, including aluminum panels, stainless steel elements, and acrylic illuminated modules, maintaining tight manufacturing tolerances throughout production.

Phase 3: Finishing, Assembly & Delivery

All components were precisely finished, assembled, and quality inspected, then carefully packaged to maintain alignment accuracy during transportation and ensure installation readiness.

Outcome

Ultimately, LC Sign delivered healthcare signage that is cohesive, minimalist, and well aligned with the environment of Aurora Mental Health & Recovery.

• Seamless Structural Integration: As an experienced healthcare signage manufacturer, LC Sign successfully integrated multiple materials and multi-layer illuminated cabinet structures into a unified system, ensuring precise alignment, structural stability, and consistent visual performance throughout.
• High-Precision Fabrication: LC Sign achieved strict fabrication accuracy across all components, ensuring precise alignment, consistent quality, and reliable fit across complex multi-layer assemblies.
• Professional Assembly & Accurate Delivery: Our team completed systematic assembly and coordinated multi-site delivery, ensuring secure packaging and efficient distribution without compromising installation readiness or product integrity.

Specifications

Products                                                                                   Parameters

Illuminated monument sign                         1 set, single-faced with dimmable LEDs

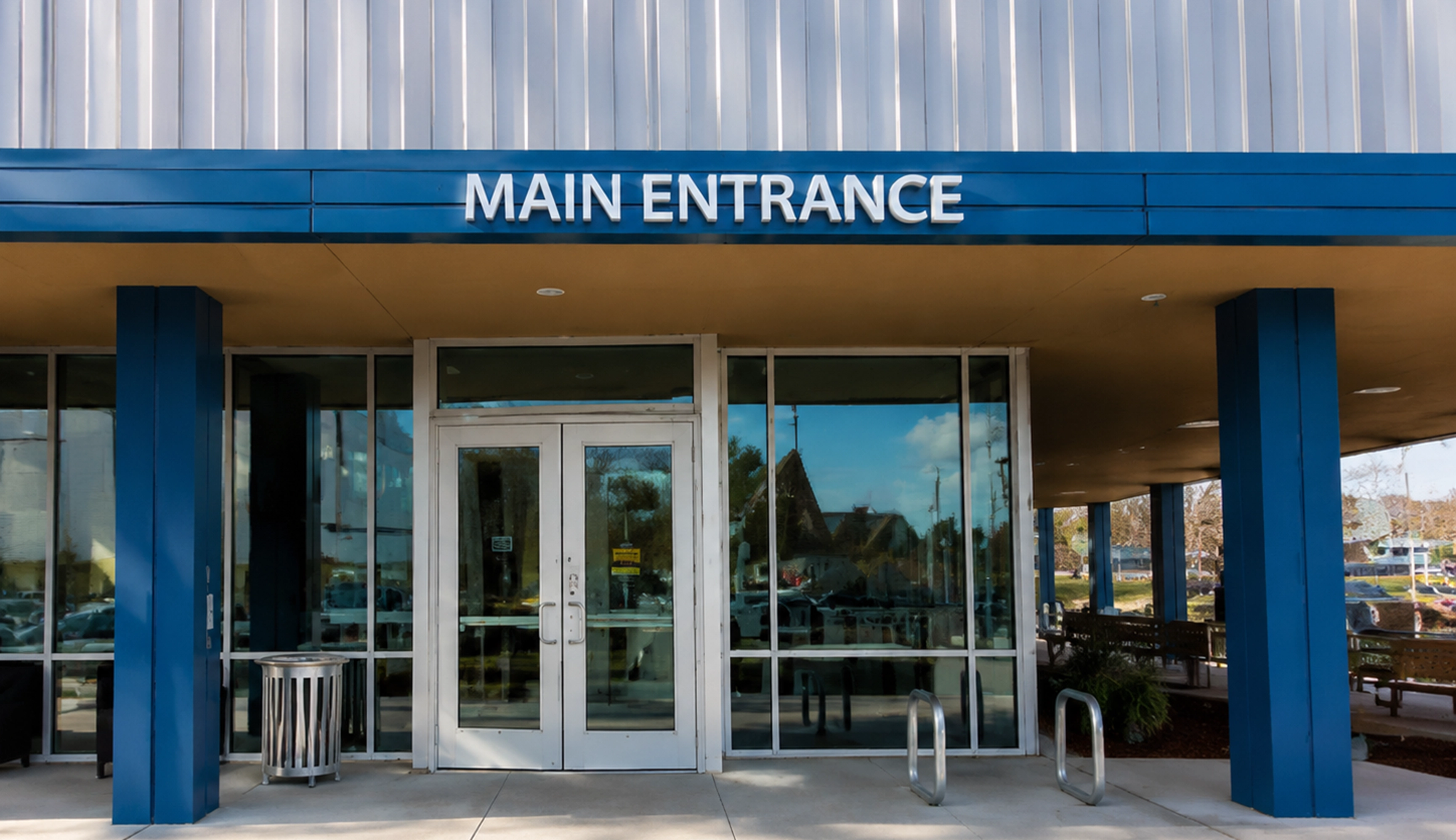

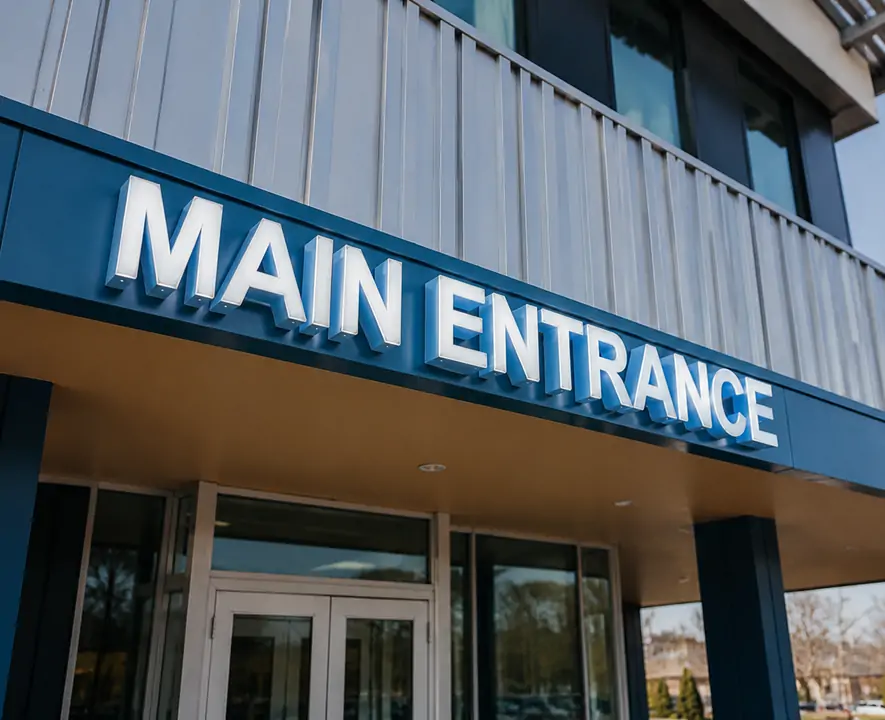

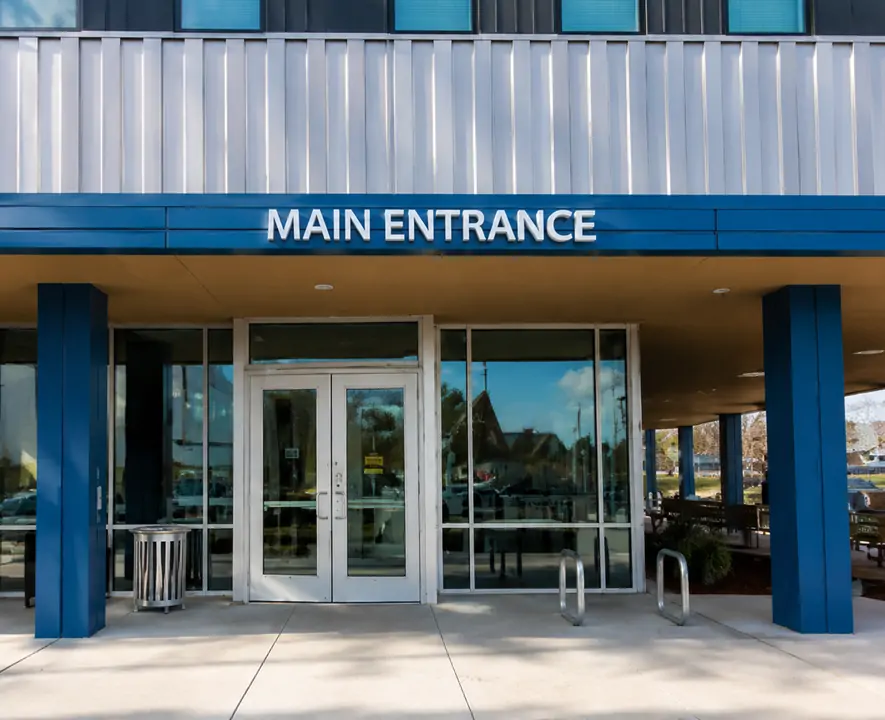

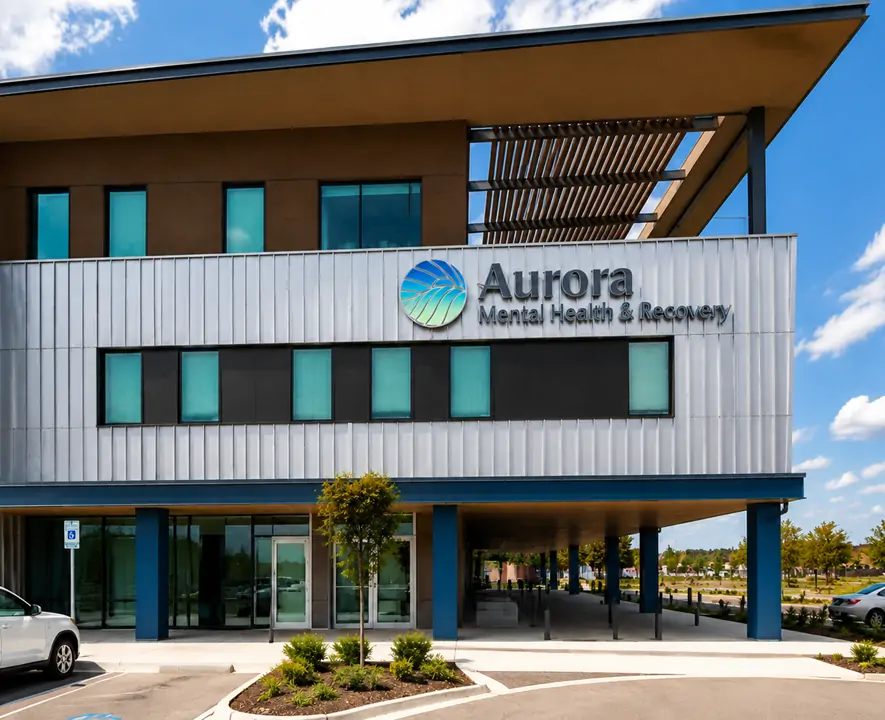

Trimless channel letter                                  3 sets with white LEDs

3M exterior grade cut to shape vinyl          3 sets, applied directly to face of exterior doors

1″ thick acrylic FCOs                                        2 sets, faces to be painted to match SP5

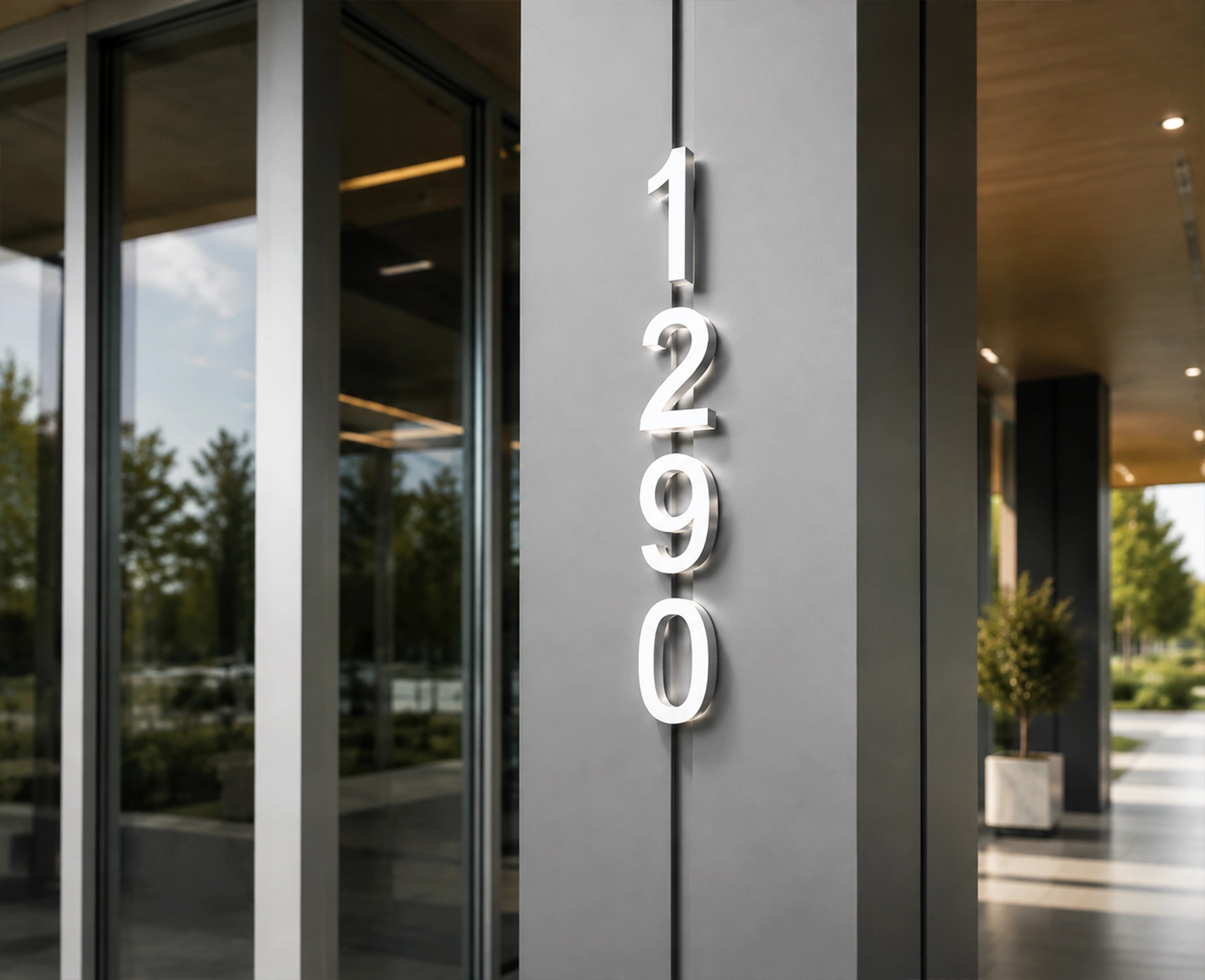

1/8” aluminum numerals                               M1 brushed finish

B.5 feature sign – reception desk                Flat cut out ½” aluminum

1/2″ Aluminum fcos                                         Flat cut out ½”aluminum

Exterior grade red v2 vinyl                            Applied first surface
